Forum Index : Electronics : 150V 45A MPPT - roll your own

Page 51 of 51

Author

Message

Revlac

Guru

Joined: 31/12/2016
Location: Australia
Posts: 1267

Posted: 12:51am 18 May 2026

Copy link to clipboard

Print this post

While it is doable, the Charge controller has copper plate on top and bottom of the PCB so more unnecessary work leaving the NC legs on, personal preference perhaps.

Cheers Aaron
Off The Grid

nickskethisniks
Guru

Joined: 17/10/2017
Location: Belgium
Posts: 474

Posted: 08:44am 18 May 2026

Copy link to clipboard

Print this post

You could make a daughterboard "capacitor pcb" that fits the original holes. Or a redesign of the pcb, I could do that for the first version if you want. Wiseguy designed the last version that I can't modify. But you might have the boards allready?
It's a robust design made for long life so better do it first time right.

GleamBright
Newbie

Joined: 21/04/2025
Location: Australia
Posts: 32

Posted: 06:49am 20 May 2026

Copy link to clipboard

Print this post

I think I'll have a go at drilling the PCB with a template. My PCBs will be a part of a bulk order, so can't be individualised. Likely will solder the NC connectors as well for support, since these are 90mm high. Also I will only need 6 if I'm correct.

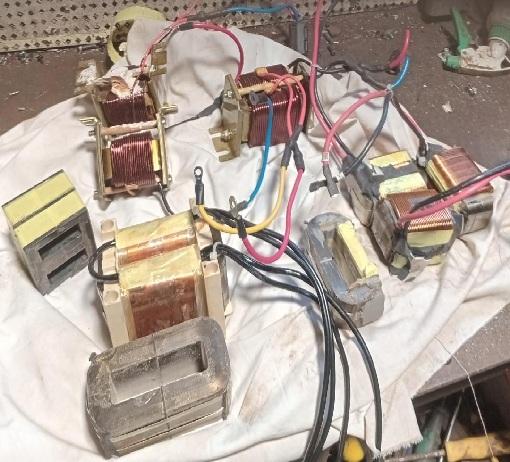

My haul of choke candidates: Two small and one big, from an Aerosharp. Three small of comparable size to the small Aerosharp ones, one from a scrapyard of comparable dimensions to the large Aerosharp, and two from the Aurora of dimensions 106x52mm outside, width 45mm, centre hole 73x20mm.

Are the Aurora ones candidates, being substantially bigger than those sourced from Aerosharp? Any suggestions for installation?

Revlac

Guru

Joined: 31/12/2016
Location: Australia
Posts: 1267

Posted: 07:12am 20 May 2026

Copy link to clipboard

Print this post

The 5Kw Aurura choke, leave that one together it is practically good to go for the Charge controller, the 2 coils can be joined but the polarity needs to be checked with the an LCR Meter, forgot what the numbers are, you can find that out later.

Cheers Aaron
Off The Grid
